Cosmos Enclosures

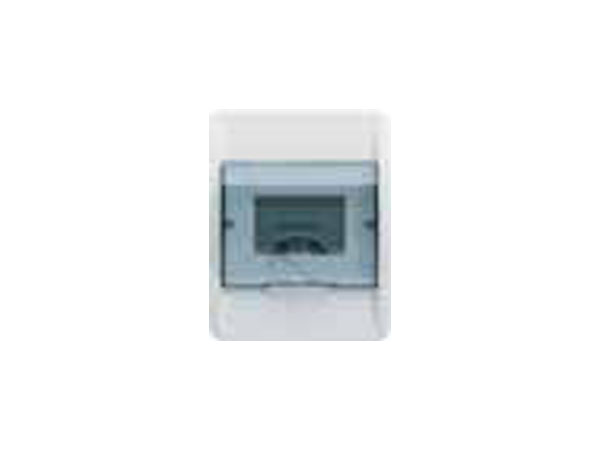

Cosmos flush mounting enclosure with hinged cover 1 row for 4, 8 and 14 ❚

Supplied with:
– plain/ transparent door for devices up to 61mm installation depth
– DIN profile for modular devices 46mm under the cover
– terminals neutral & earth fixed to the base with metallic screw

Wall boxes symmetrically, therefore they can be turned around by 180˚

Cable entries:

• knock-out type, top, bottom, side cover tube/cable entry

Rated insulated Voltage

• AC 400V/ 50Hz

Rated current up to 63A

Insulation Class II

Colour

• RAL9010

IP rating

• IP30 without door
• IP40 with door

In accordance with

• IEC 61439-3
• IEC 60 695-2-1/0 & 60 695-2-1/1
